Olympus XA4 Macro

Reviews
Posted by Bengt Köhler Sandberg 2017-05-08

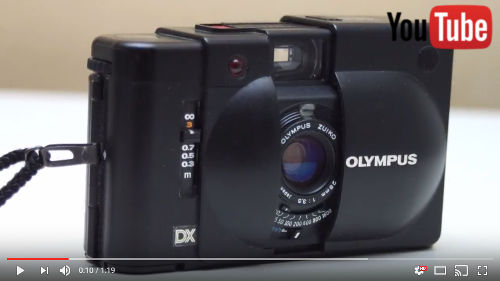

Olympus XA4 Macro

One of the more rare cameras in the Olympus XA series.
It came out in 1985 and was only manufactured during one year.

Specs:

Lens: Olympus Zuiko 28mm f/3.5 (5 element)
Closest Focus: 0.3m (1ft)
Aperture: f/3.5 to f/14
Shutter: 1/750s to 2 sec
Light meter: CdS just over the lens (Iso 25 - 1600)
Battery: Two 1.5v SR44 or equivalent
Flash: None built in, flash accessory can be mounted on the side
Weight: 240g

Takes 135 film

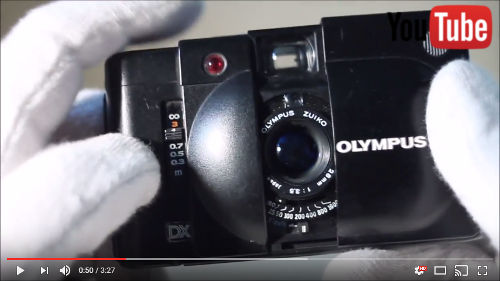

Operating
Olympus XA4 Macro

Viewfinder:

Very simple, bright and usable size.
It has a frame mask with markings for close focusing as well as a little green led in the corner.
This light up if the shutter speed are low and you risk getting blurry images handheld.




Build quality

It's mostly plastic with some metal parts but still quite nicely built.
The body itself are very sturdy and the only part that feels a bit plasticy is the sliding part that covers the lens.




Usability

It's one of the smaller full-frame compact cameras that is very silent to operate.
So it can be great for thing like street photography or anything where you want to be discreet.
Sure it's not very fast if you want to take multiple shot in a burst.
But can be a really fast point and shoot for one shot.
Something that could be useful for this is its scale focusing which automatically goes to 3m when the camera is closed.
The most versatile focus setting and load it with a film so the aperture stops down a bit and you get a long depth of field.

But scale focusing can also be a bit tricky as judging closer distances by eye can be a bit hit and miss.
However the camera do help you with the closest distances as you can use the cameras arm straps to easily measure out 0.3 and 0.5 meter.



Sample images

The film is exposed @ ISO25 and I expect that most pictures are taken with an aperture of f/4 - f/5.6.
Except for the macro shots which are probably wide open.

Analogue B&W film
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro




Bokeh
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro

Olympus
                                                          XA4 Macro



Flare / Backlight
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro
Olympus
                                                          XA4 Macro



More sample images can be found at:
http://www.sample-image.com/olympus-xa4-macro/



Conclusion

One very nice pocket sized cameras and it's close to sorcery what Olympus managed to cram into this.
A 5 lens element, non-collapsible 28mm prime that can focus down to to 0.3m and they did this in one of the smaller full-frame cameras out there.
Only know of the Ricoh GR1 cameras which are somewhat comparative but it's bigger and has a collapsible lens.

As for its lens optical quality which is really good and would compete with the best of this type.
Lovely sharpness, bokeh and how it handles flares.

The only downside I can see with this is that it's somewhat rare which is a shame and often a bit pricey.
Plus some might not be a fan of the scale focusing while others love it.


Thumbs up:
Image quality
Lightweight and small
Closest focus of 0.3m (1ft)

Thumbs down:
Somewhat rare and often a bit pricey



Want to help me out?
Make my site known by sharing it with your friends and family.
This helps and would be really appreciated, thanks!
Share on Facebook


Technical Info
Scanner: Plustek OpticFilm 7600i
Film: AGFA CINEREX (X-ray film)
Developer: Rodinal
